Details:
BACE’s most popular machine, this 60” Vertical Downstroke Baler is ideally suited for OCC & shrink-wrap, producing bales up to 1,000 lbs.
For businesses that need something one step up from a standard vertical baler but not the most heavy-duty model, Bace balers are the perfect middle ground.
Available Options
- Slotted Front Door
- Wire Guides (allows for front bale tie-off)
- Rear Feed Opening, Front Eject
- Feed Chute
- Counter Weighted Floppy Retainer Dogs
- Oil Heater
- Weather Proof Package
TECHNICAL SPECIFICATIONS
PERFORMANCE
| Bale Volume | 50 cu. ft |
|---|---|
| No. of Bale Tie Slots | 5 |
| Compact Force lbs – Normal / Maximum | 56,548/62,172 |
| Platen Pressure | 32 PSI |
| Average Cycle Time | 49 Seconds |
| Loading Height | 54.50″ |
| Ejector System | Semi-Automatic |
HYDRAULIC / ELECTRICAL
| Motor HP | 10 |
|---|---|
| Voltage 3 Phase
Full Load Amps (A = Amps |
208V, 230V, 480V
30A, 28A, 14A |
| Pump GPM | 10.5 |
| Normal/Maximum System Pressure PSI | 2000/2200 |
| Cylinder Bore x Stroke | 6˝ x 42˝ |
| Hydraulic Tank Capacity Gallons | 22 |
* Due to continual product improvement BACE reserves the right to change specifications without notice.
DIMENSIONS
| Height (D) | Width (B) | Depth (C) |
|---|---|---|
| 139″ | 88″ | 45.5″ |
DOCUMENTS

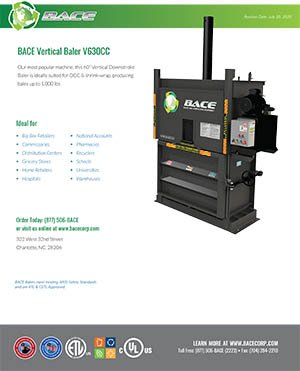

PRODUCT SHEET
OPERATIONS MANUAL
